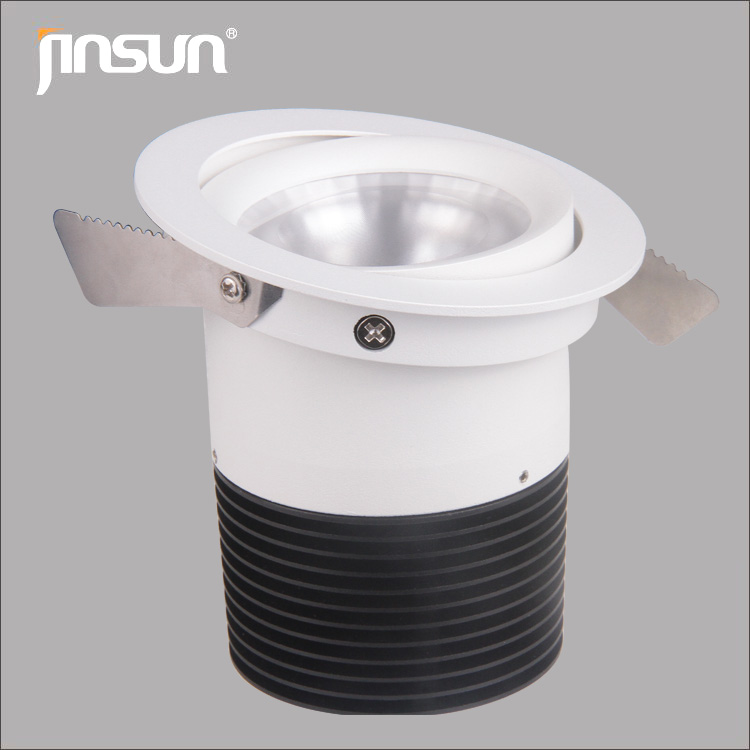

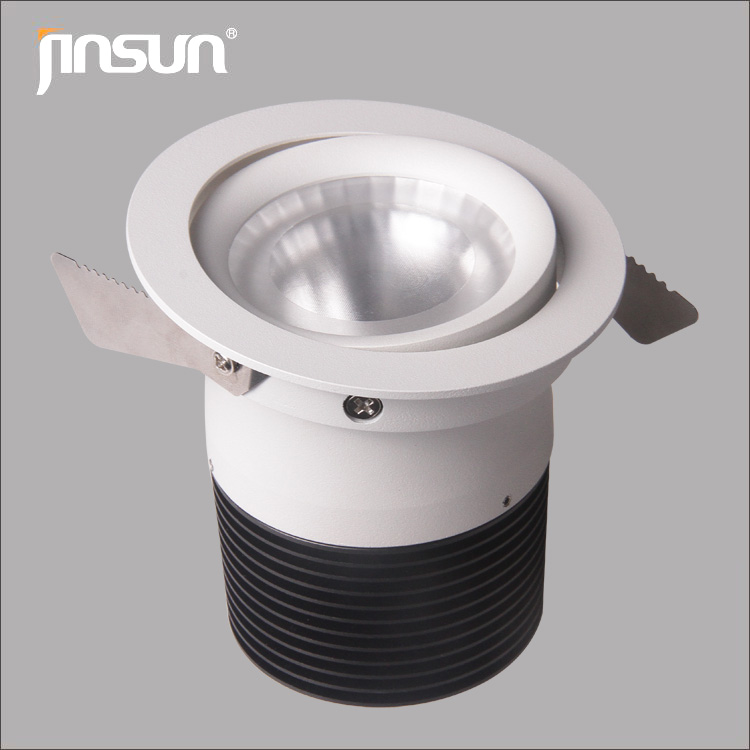

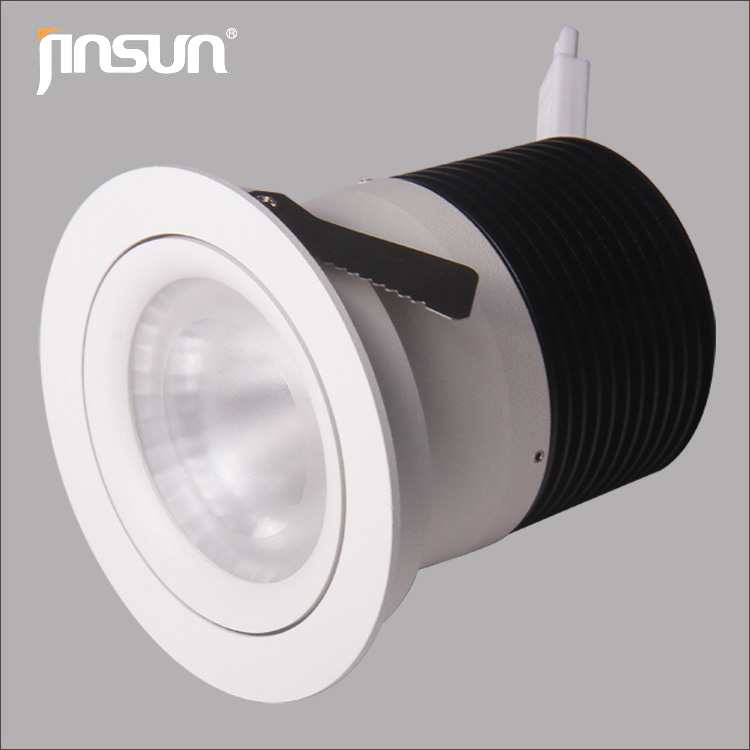

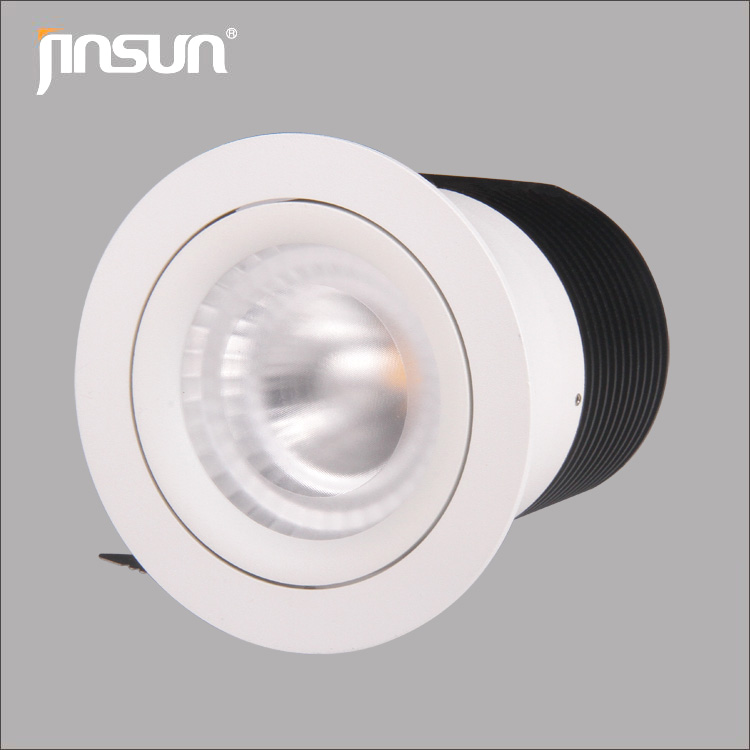

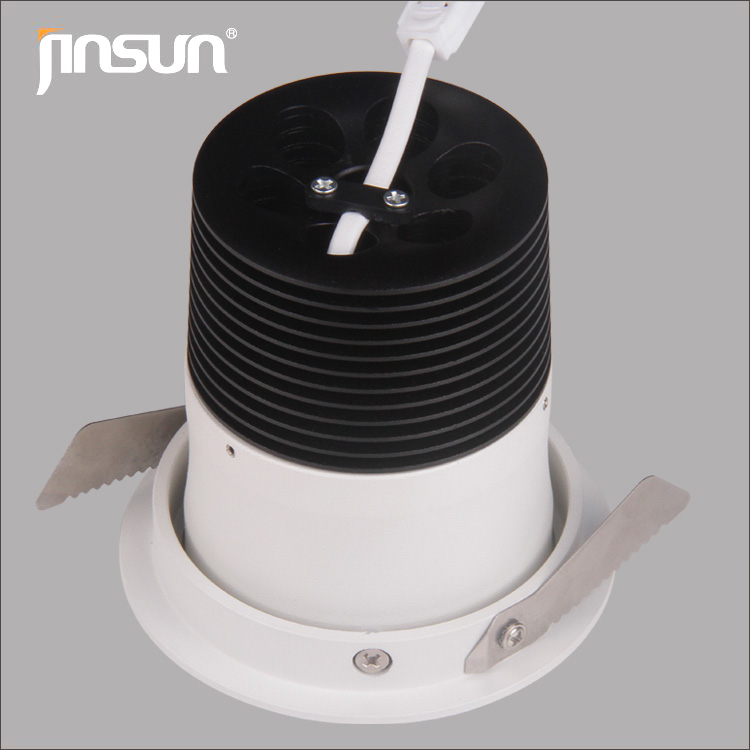

LED Ceiling Spotlight of Whirlwind Series

Home >> Product >> Led Ceiling Lamp >> LED Ceiling Spotlight of Whirlwind Series
Model：D2005A

   Main parameters

Dia:￠105mm
Cutout:￠95mm
Height:105mm
Beam Angle:24º/36º
Working temperature:-20℃～+45℃
Color temperature optional:3000K/4000K/5000K
Electrical output:DC 37V/450mA


Item No.
Power(W)
Dia.(mm)
Cutout(mm)
Height(mm)
Beam Angle(º)
COB Brand
Color temperature optional
CRI≥
PF≥
Output Voltage(V)
Output Current(mA)
Tc(℃)
Luminous(Lm)
D2005A
20
105
95
105
24º/36º
Citizen/Bridgelux
3000K/4000K/5000K
82
0.9
37
450
62.6°
1550

Notes: Tc solder temperature data testing at 35℃ environment temperature
